Jones
DURA-CON ?
High Reliability
Series
Plugs/Sockets
All-Plastic 300
” Multiple
Solder Eyelet
Flush Plate
[.050 (1.27mm) Density Density
Solder Cup/Wire
D-Microminiature]

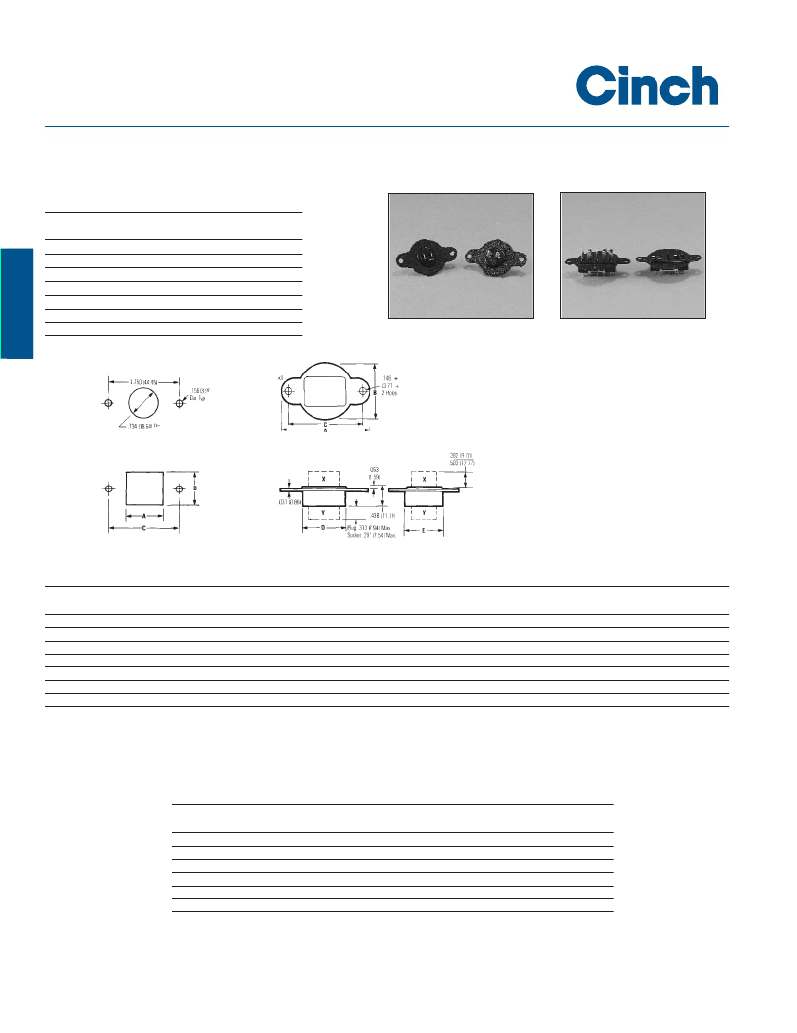

300 Series with Flush Plate (FP)
No. of Catalog No. Catalog No.
Contacts Plug Socket
2 P-302-FP S-302-FP
3 P-303-FP S-303-FP
4 P-304-FP S-304-FP
2
6 P-306-FP S-306-FP
8 N/A N/A
10 P-310-FP N/A
12 P-312-FP N/A
NOTE: Not available in contact sizes 15-33.
Dimensions - Plug or Socket
X = length of plug contacts. This dimension does not apply to sockets.
Y = length of plug or socket tails.
No. of
A
B
C
D
E Max.
Contacts
2
3
4
6
8
10
12
in
2.063
2.063
2.063
2.063
--
2.563
2.563
mm
52.40
52.40
52.40
52.40
--
65.10
65.10
in
1.250
1.250
1.250
1.250
--
1.750
1.750
mm
31.75
31.75
31.75
31.75
--
44.45
44.45
in
1.750
1.750
1.750
1.750
--
2.250
2.250
mm
44.45
44.45
44.45
44.45
--
57.15
57.15
in
-
.938
.688
.938
--
1.500
1.188
mm
-
23.81
17.46
23.81
--
38.10
30.16
in mm
.719 18.26
.500 12.70
.750 19.05
.750 19.05
-- --
.750 19.05
1.000 25.40
Panel Cutout Dimensions
A
B
C
Reference
303-FP
304-FP
306-FP
308-FP
310-FP
312-FP
in
.953
.703
.953
--
1.516
1.203
mm
24.21
17.86
24.21
--
38.51
30.56
in
.516
.766
.766
--
.766
1.016
mm
13.11
19.46
19.46
--
19.46
25.81
in
1.750
1.750
1.750
--
2.250
2.250
mm
44.45
44.45
44.45
--
57.15
57.15
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-40
